- Quick lock control levers easily position tool rest.
- Large 10″ inboard turning capacity.
- Cast-iron frame, head and tailstock to reduce chatter and vibration for
smoother turning. - Maximum turning capacity of 15″
between centers. - Maximum distance of 45″ between
centers with optional bed extension (Item #25-125). - V-belt provides smooth turning.
Six speeds: 480, 850, 1270, 1960, 2730 & 4023 rpm.
| Spindle speeds (6) | 480, 850, 1270, 1960, 2730 & 4023 rpm |
| Swing over bed | 10” (254 mm) |
| Swing over tool rest | 7 1/2 (190 mm) |
| Distance between centers | 15” (382 mm) |
| Spindle thread | 1” - 8 tpi |
| Tailstock through hole | 3/8” (10 mm) |
| Morse taper | MT #2 |
| Self ejecting travel | 2” (51 mm) |
| Tool rest | 6” (152 mm) |
| Face plate | 3” (76 mm) |
| Motor | 1/2 HP, 110 V,, 3.8 A, 1720 rpm |
| Weight | 106 lbs (45 kg) |
Includes:
Live center
Spur center
Knockout bar
Safety glasses
Features:
►V-belt provides smooth turning.

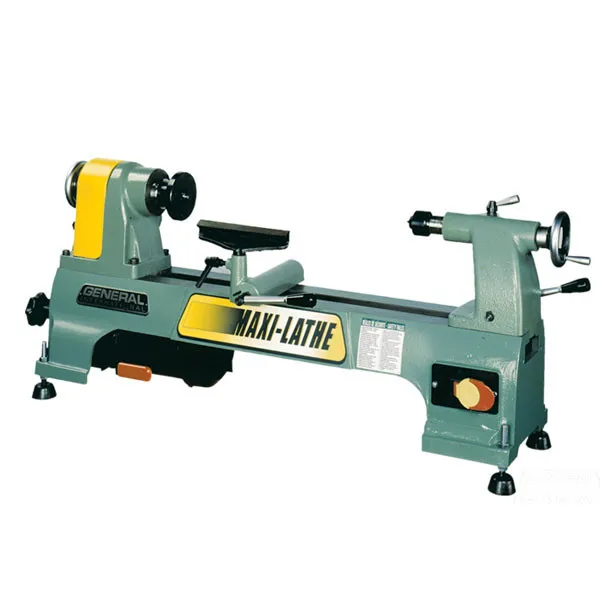

General - "Maxi-lathe" 10" x 15" wood lathe - 25-100M1
