Description

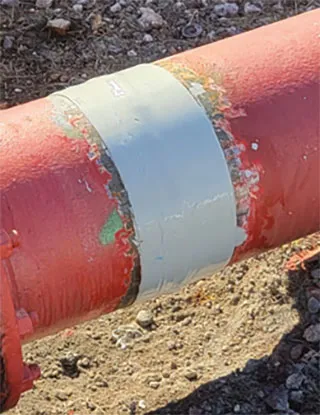

XCorr HP 100 is an innovative multi-component epoxy composite repair system, specifically engineered for high-pressure pipe repair applications. It is capable of effectively sealing and withstanding working pressures up to 1,500 PSI (105 kg/cm2) and operating temperatures as high as 350ºF (177ºC). With a built-in 4:1 safety margin, XCorr HP 100 offers reliable performance in demanding environments.

Prominent Features of XCorr HP 100 for High Pressure Pipe Repair:

• Robust Epoxy System: Utilizes a premeasured 2-part novolac epoxy system, ensuring consistent and effective application.
• Exceptional Chemical Resistance: The novolac epoxy resin composition provides superior resistance to a wide range of chemicals.
• Environmentally Friendly: Contains 100% solids with no VOCs, making it a safer and more environmentally responsible choice.
• Optimized Mixing Ratio: Features a 3:1 mixing ratio that is pre-measured for convenience, accuracy, and efficiency.
• Cartridge Dispensing: Minimizes waste and guarantees complete mixing while managing the pot life effectively.
• Fiberglass Reinforcement: Employs high-performance fiberglass fabrics for multidirectional mechanical reinforcement, ensuring durability and adaptability to various pipe geometries.
• Technical Felt Layer: A primary felt layer enhances interfacial wetting for optimal high-pressure performance.
• Strong Bonding Capacity: Offers outstanding compressive and adhesive bond strength, ensuring a secure and long-lasting repair.
• Durable Coating: Creates a robust coating that withstands extreme operating conditions without shattering.
• Rapid Return to Service: High-pressure process piping can be returned to service in approximately 5 hours, with accelerated cure times achievable through annealing.

XCorr HP 100 is the ideal solution for high-pressure pipe repair, combining superior leak sealing capabilities with strength and efficiency. Whether for industrial, utility, or commercial pipelines, XCorr HP 100 provides a dependable, high-performance repair system that meets the rigorous demands of high-pressure environments.

Looking for the XCorr HP 200 (2,060 PSI Version)? Click here.
